Pedestrian walkways

"BRIDGE OF MUSIC" IN ROME Detailed and constructive design

The assignment concerned the detailed design of the bridge over the Tiber river called "Ponte della Musica" which connects the area of the Foro Italico with the area of the Parco della Musica and the MAXXI museum. The bridge consists of two arches with spans of 186.9m that support a platform of variable width from 17.20m to 20.70m, organized in such a way that it can be adapted to a completely pedestrian or mixed use: pedestrian on the lateral paths or tramway in the central path of width 7.10m.

PEDESTRIAN WALKWAY ON THE EUR LAKE

Structural detailed design of a pedestrian walkway in the Cascate garden in the Lake Park in EUR - Rome. The assignment concerned the detailed design of a footbridge with a single span of length 16.5m, with a 1.80m walkable platform made of stainless steel and with glass decking.

JUNCTION OF VIA DEL TINTORETTO - VIA LAURENTINA - VIA DELLE 3 FONTANE (EUR - Rome - Italy)

The project in question basically comprises three distinct groups of works which are:
 - the overpass where Via del Tintoretto crosses Laurentina Street, the off-ramps and the embankments of access to the mentioned overpass;
 - the large box underpass that allows the Fiumicino highway to settle on the Laurentina and all the accessory works necessary for the containment of the two approach trenches to the underpass;
 - the complex system of pedestrian and cycle tracks, completely distinct from the road system.

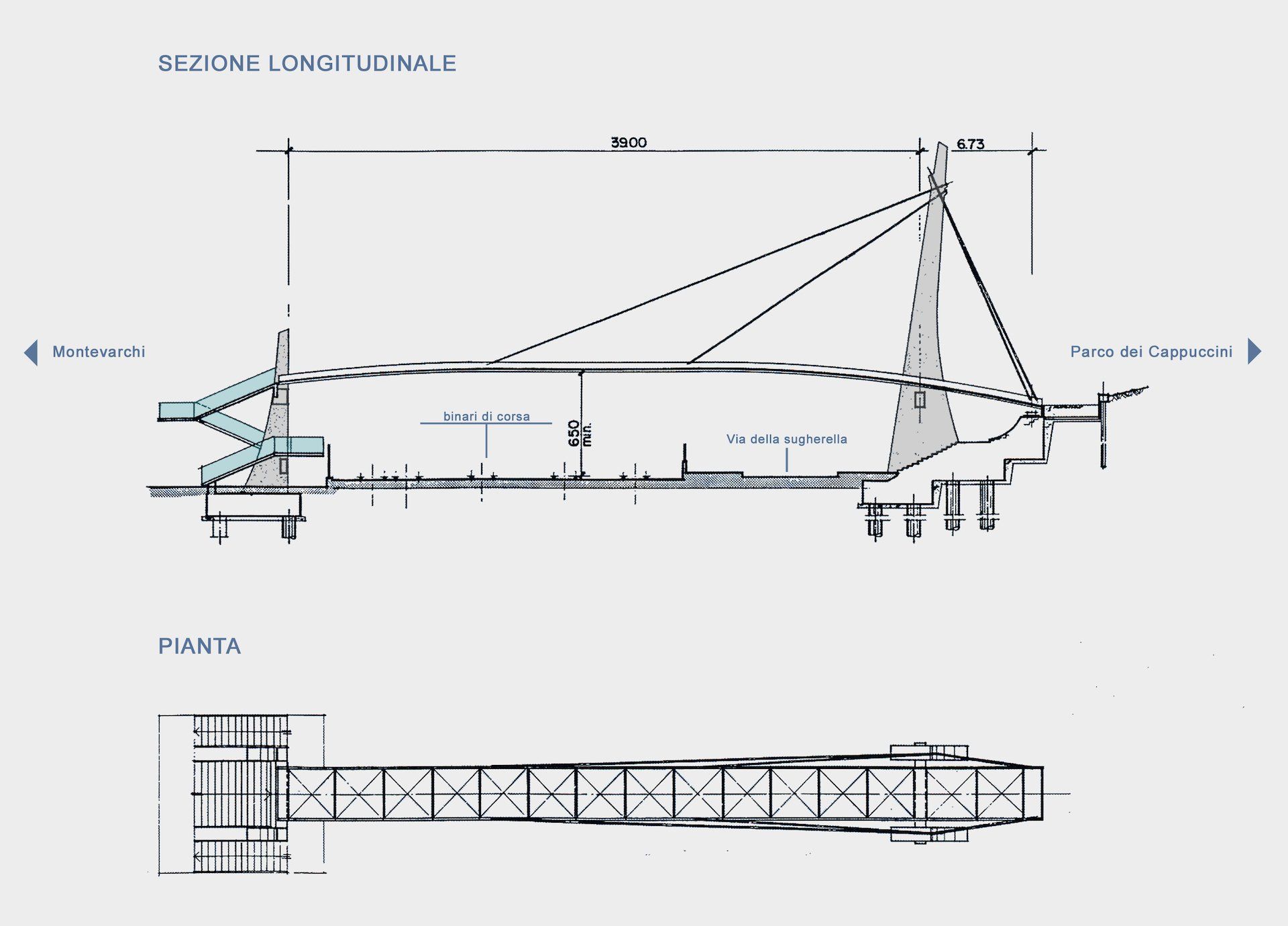

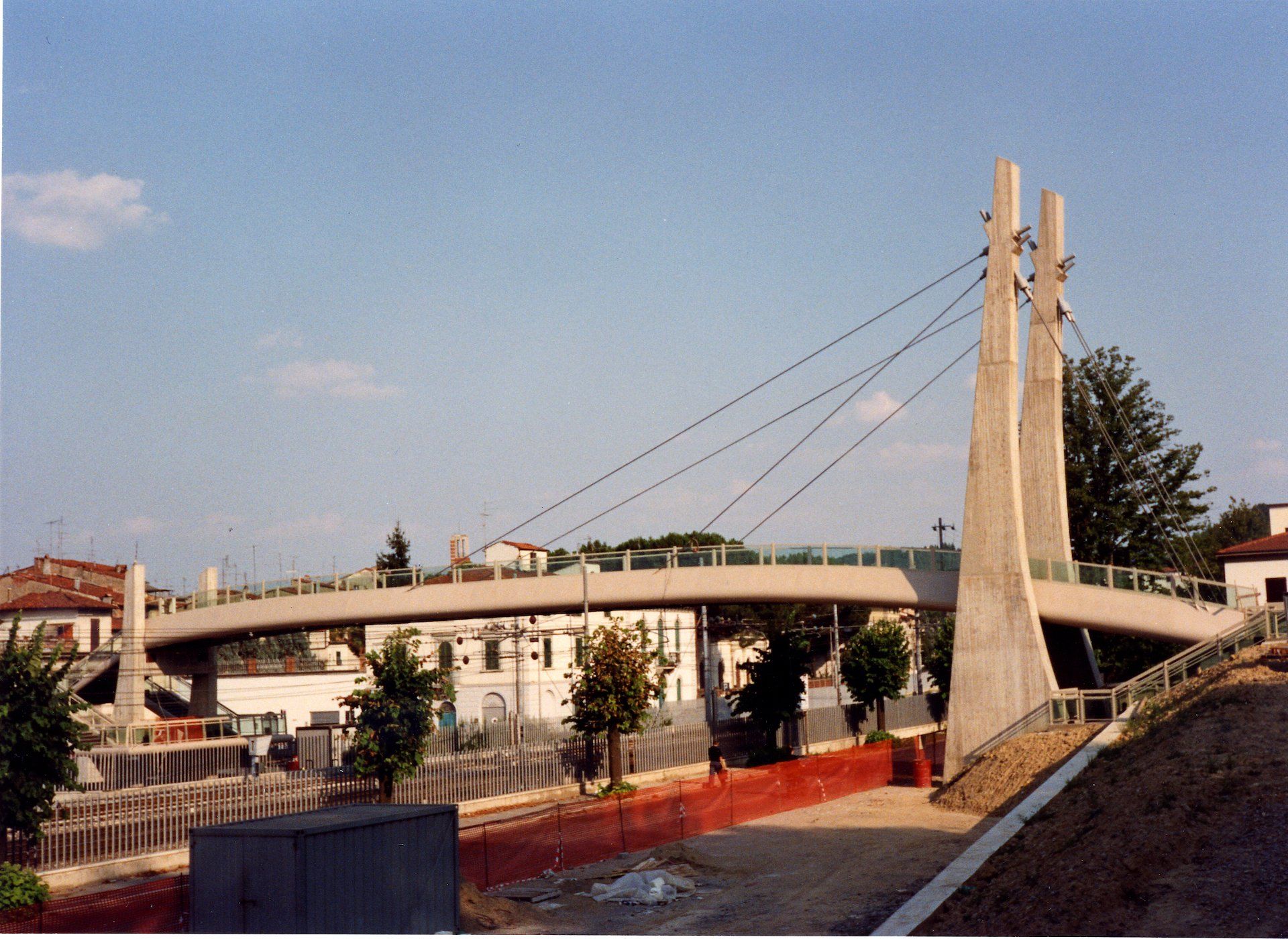

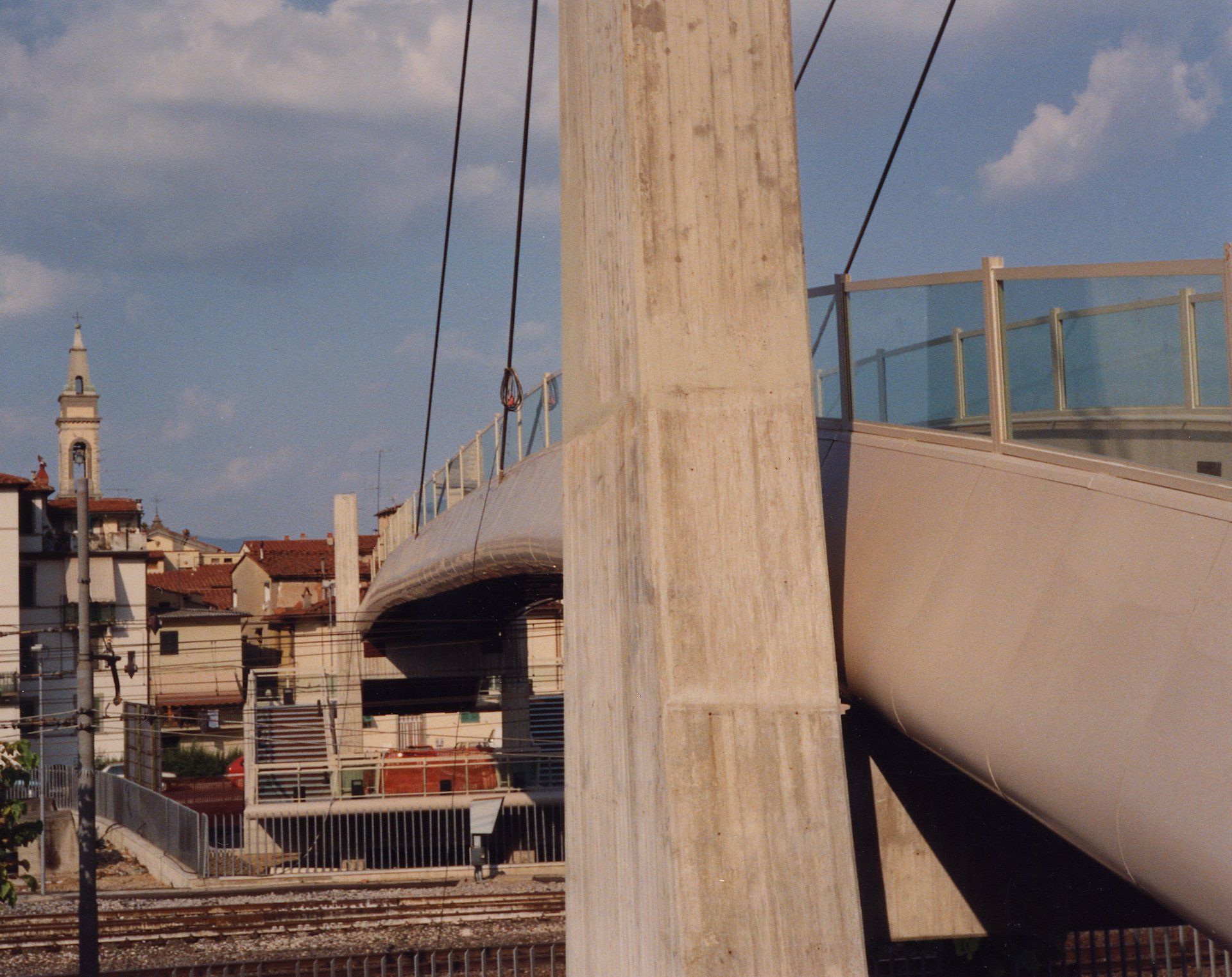

FOOTBRIDGE OF THE MONTEVARCHI STATION (Montevarchi - Italy)

As part of the completion of the Rome-Florence Direttissima line, the upgrade of some structures of the existing line was planned, including the modernization of the Montevarchi station, a significant point of interchange between rail and road to and from Florence. In this context the pedestrian walkway in question creates a continuity between the historic center of the town and the car parking on the opposite side of the railway.
